FRONTX - USB Internal Cable - connect to motherboard header (pinout)

This cable extends 1 USB port (type A) to the front panel of computer system. Cable is compatible with both USB 1.1 (standard) and USB 2.0 (high-speed).

USB TYPE A INTERNAL

SPECIFICATIONS

PRODUCT NAME
FRONTX USB Type A Internal
PRODUCT CODE
CPX101-2
BAY USAGE
Half of large bay
CONNECTORS
USB type A female
1x5 header connector female
CABLE
USB cable (UL 2725)
Length - 2.5 feet (762 mm)

WIRE ASSIGNMENTS

pin assignment
Red: + 5V / Voltage + / VCC
White: D - / Data - / USB -
Green: D + / Data + / USB +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current / Shielding
The S-GND wire is fatter and can be easily recognized. The connection of S-GND wire to the header pin is optional.

HEADER CONNECTION GUIDES

connection guide 1
Diagram 1: On most motherboards, the USB header/pin-out consists of 9 pins arranged in 2 rows, which allows for 2 USB connections (i.e. USB1 and USB2). Normally, the pins for USB1 and USB2 are in seperate rows.
Diagram 2: Simply plug the connector onto the 5-pins row, and make sure that the pin assignments and wire assignments are matched correctly.
Diagram 3: Alternatively, you can plug the connector onto the 4-pins row, and leave the S-GND wire unconnected.
You might have to rearrange the wires to match with the pin assignments, or change the header connector if necessary, depending on the layout of the USB header.
On some motherboards, there is a NC pin in the USB header. You can connect the S-GND wire onto this pin. NC simply means "no connection" and NC pin is an "empty" pin.
2X5 PINS HEADER

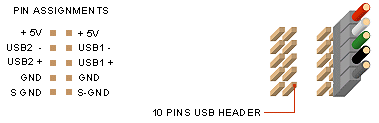

Refer to the diagram below, for 2x5 pins header, simply plug the connector onto one row of the pins, and always make sure that pin assignments and wire assignments are matched correctly. You might have to rearrange the wires if necessary.
connection guide 2
2X4 PINS HEADER

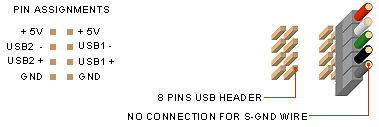

Refer to the diagram below, for 2x4 pins header, simply plug the connector onto one row of the pins. Please note that there is no S-GND pin in this header. You can leave the S-GND wire unconnected. You might have to rearrange the wires if necessary, in such that the wire assignments and pins assignments are matched correctly.
connection guide 3

ACTIVE PINS NOT IN THE SAME ROW

On some motherboards, the 4 active pins are not located in the same row, as shown in the example below:
connection example 4
To connect to this type of USB header, you need to change the header connector to 2x5. Simply rearrange the wires within the 2x5 connector to match with the pin assignments. If the green wire is connected to the USB2+ pin, the white wire must be connected to the USB2- pin. The red wire can be connected to any +5V pin, and the black (GND) wire to any GND pin. If there is no S-GND pin provided, you can leave the S-GND wire unconnected.
The 2x5 header connector can be purchased at our webstore.

DIY: panel cut-out & connector dimensions
